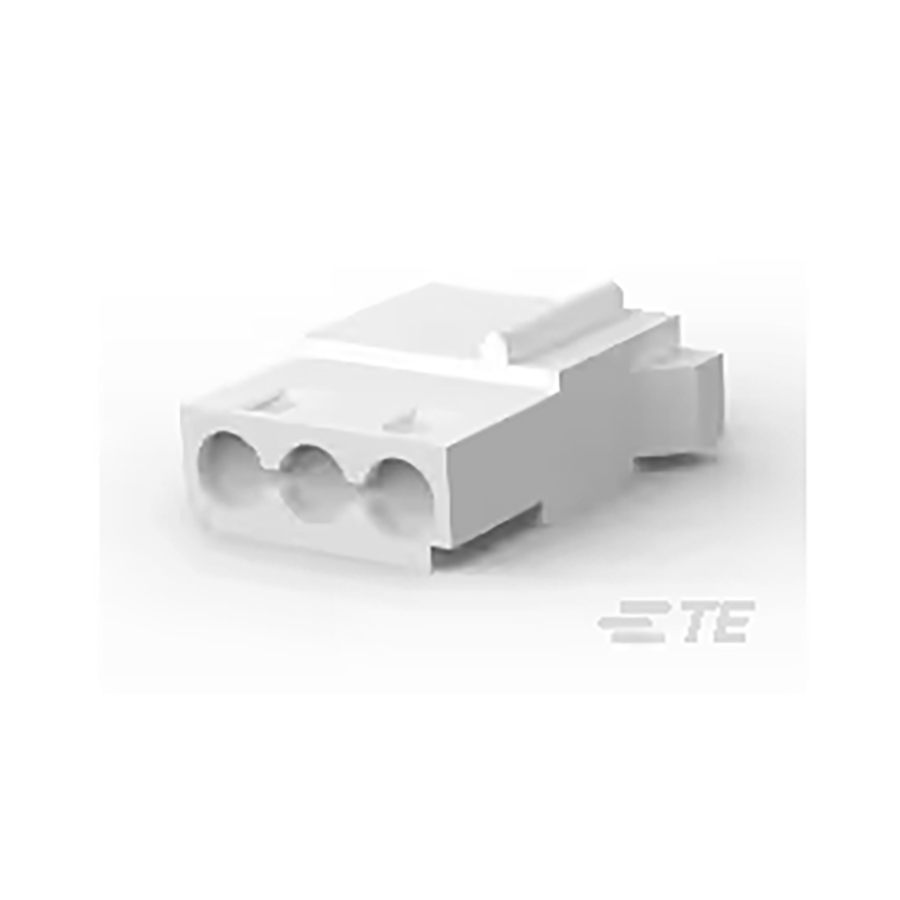

1-480303-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-480303-0
Datasheet:
Description:
Headers and Wire Housings Free Hanging Socket Number of Positions:3 Pitch:5.08 mm
| Parameter | Value |
|---|---|
| Length | 21.08 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 7.37 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 21.59 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Pitch | 5.08 mm |
| Current Rating | 13 A |
| Max Current Rating | 13 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 3 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Detent |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Resistance | 4 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Natural |
| Contact Gender | Male |
| VDE Tested | No |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 2163
Distributors
pcbx
pcbxUnit Price$0.17366
Ext.Price$0.17366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17366 | $0.17366 |
| 10 | $0.15564 | $1.55640 |
| 50 | $0.13949 | $6.97450 |
| 100 | $0.12255 | $12.25500 |
| 500 | $0.10767 | $53.83500 |
| 1000 | $0.10052 | $100.52000 |
| 3000 | $0.09384 | $281.52000 |
| 5000 | $0.08761 | $438.05000 |
